UMS 865 HT

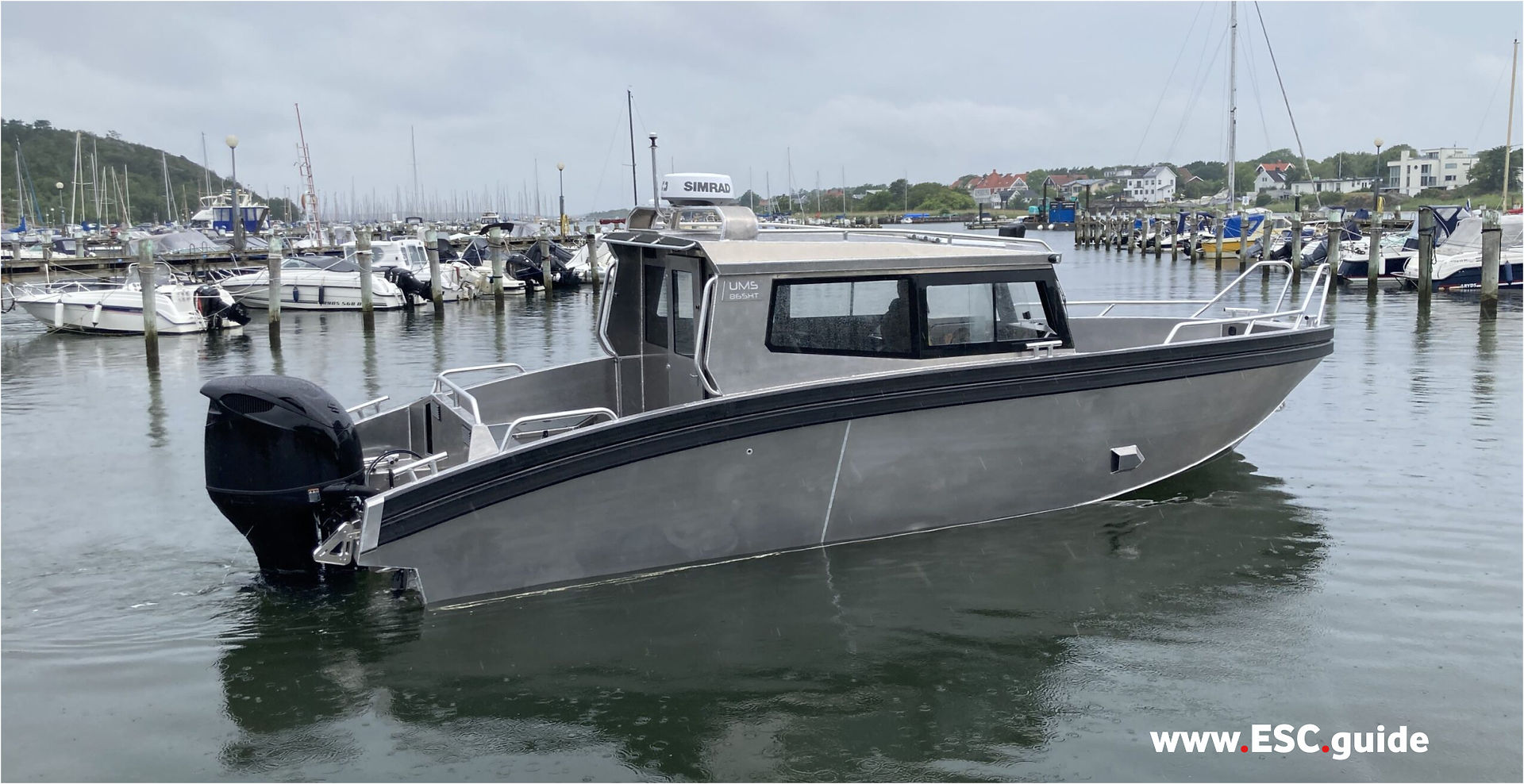

Completely aluminum boat UMS 865 is the largest serial cabin boat built by UMS company. The UMS 865 HT modification is distinguished by an open bow with lockers for baggage storage. This provides opportunities for recreation or fishing during nice weather conditions. The boat can be powered by one or two engines with a capacity of up to 500 hp. Due to the high strength characteristics, UMS 865 withstands even the most severe conditions. The size of the boat provides enough space for both professional tasks and active recreation. In addition, the boat can be equipped with a sleeping place in the cabin, a heater, a kitchen module, a refrigerator and a toilet in a separate compartment.



Παρουσίαση UMS 2024
.pdf
Λήψη PDF • 23.29MB

More information: https://www.esc.guide/ums



Characteristics

  • LOA, m: 8,58

  • BOA, m: 2,37

  • Board height, m: 1,58

  • Hull thickness, board/bottom, mm: 4/5

  • Deadrise, transome/middle, degree: 16,5/22,5

  • Passengers: 10

  • Transom height, mm: 635

  • Fuel tank, l: 500

  • Hull material: Aluminum alloy 5083

  • Design category: C


Engine

  • Maximum engine, h.p.: 500

  • Recommended engine, h.p.: 300

  • Maximum engine weight, kg: 576


Equipment

  • All-welded aluminum hull alloy 5083 H 111

  • Embossed aluminum bow and aft deck. EVA carpet inside the cabin.

  • Open bow with side lockers

  • Aft seat

  • Cabin furnished with carpet

  • Aluminum consoles of the driver and a passenger (toilet optional)

  • All-around cabin glass windows

  • Soft seat AJ Baltic on turnable pedestal with the slider Springfield 1240729-L – 2 pcs

  • Side seats in the cabin

  • Welded railings

  • Welded cleats – 6 pcs

  • Aluminum ladder

  • Navigational lights+musthead light

  • Cabin spot LED-lighting

  • Driver and passanger wiper

  • Cabin hatch above driver and passanger

  • Hydraulic steering system

  • Trimtabs with actuators and controls

  • Control panel for the electric equipment

  • Fuel system for 500 l. Indicator and sender included

  • Automatic bilge pump

  • Bi-polar main switch Blue Sea – 2 pcs

  • Anode hull protection with mounting bracket – 2 pcs

  • Electric socket 12 V with USB connector on driver’s console – 2 pcs

  • Battery container

  • Fender profile

  • Transom bracket (for orders with 2 engines)
