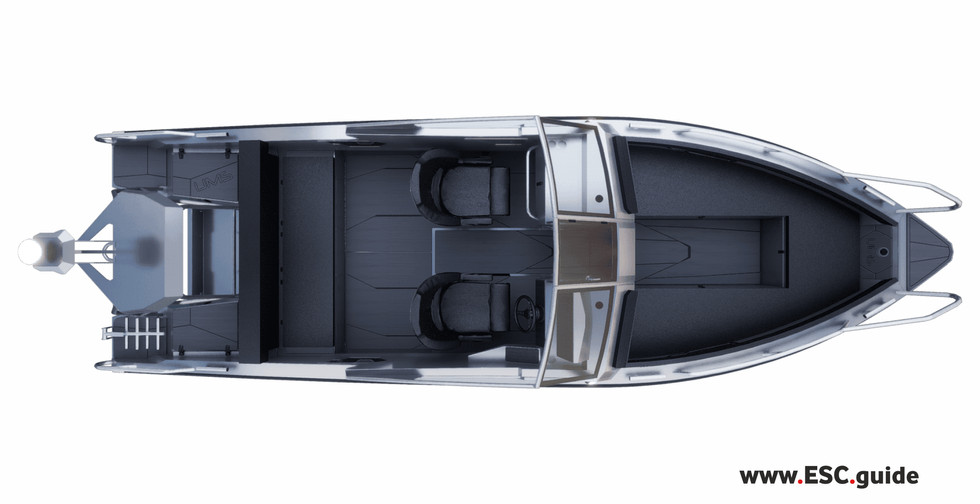

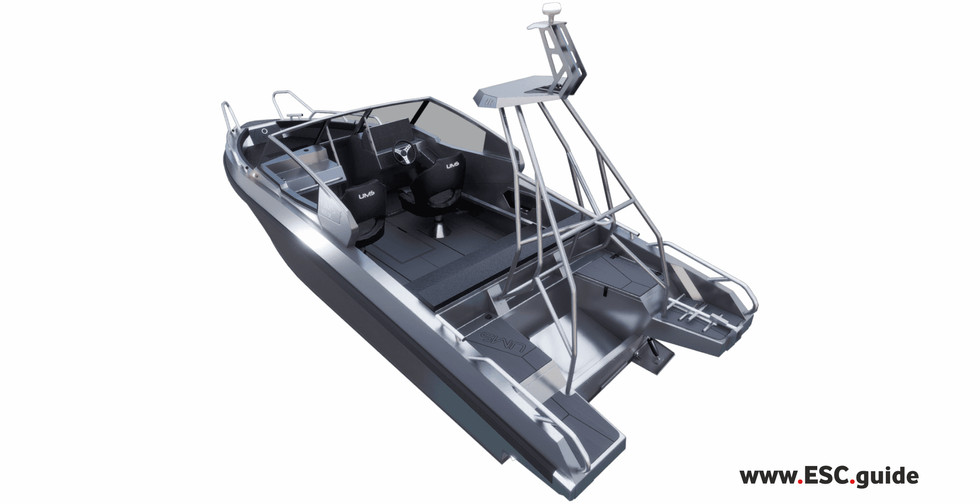

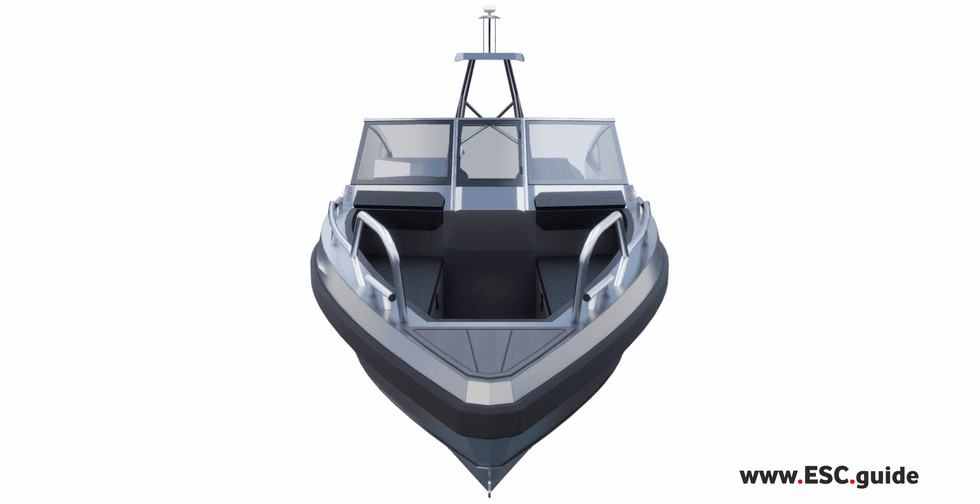

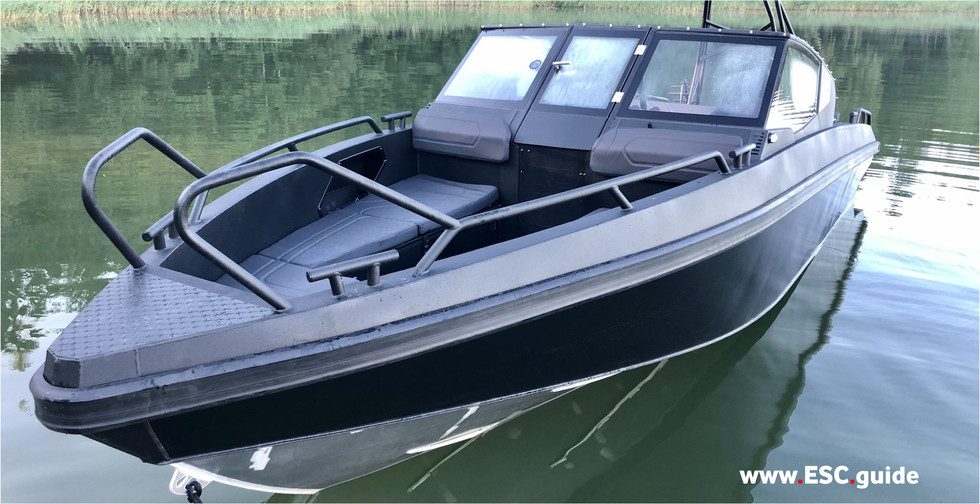

UMS 805 DC

Introducing the 805 DC – a serious vessel built for both leisure and work on the water. With a spacious LOA of 7.88 meters this boat can comfortably accommodate up to 8 passengers and carry a maximum load of 1500kg.

Whether you’re cruising on the open water or working on a project, the 805 DC will provide you with the comfort and confidence you need to tackle any challenge. With a design category of C, you can trust in its safety and reliability for all your aquatic adventures.




More information: https://www.esc.guide/ums




Characteristics

  • LOA, m: 7,88

  • BOA, m: 2,43

  • Maximum load, kg: 1500

  • Deadrise, transome/middle, degree: 19,6/23,3

  • Hull thickness, board/bottom, mm: 4/5

  • Passengers: 8

  • Transom height, mm: 635

  • Fuel tank, l: 350

  • Hull material: Aluminum alloy 5083

  • Design category: C


Engine

  • Maximum engine, h.p.: 350

  • Recommended engine, h.p.: 250-300

  • Maximum engine weight, kg: 350


Equipment

  • All-welded aluminum hull

  • Aluminum self-draining deck (star embossing)

  • Aluminum consoles of the driver and passenger with tempred glass and middle door

  • Cup-holder “UMS” (1 – driver console, 2 – passenger console)

  • U-shape bow seat Aft seat Deck locker Anchor locker near splash well (left and right) Fuel system for 180 l.

  • Indicator and sender included Swim platforms (left and right) Welded cleats – 4 pcs, railings, ladder “UMS”

  • Anode hull protection with mounting bracket – 2 pcs

  • Polyurethane foam inside the hull

  • Soft seat AG Baltic on turnable pedestal with the slider

  • Springfield 1240729-L – 2 pcs

  • Hydraulic steering system

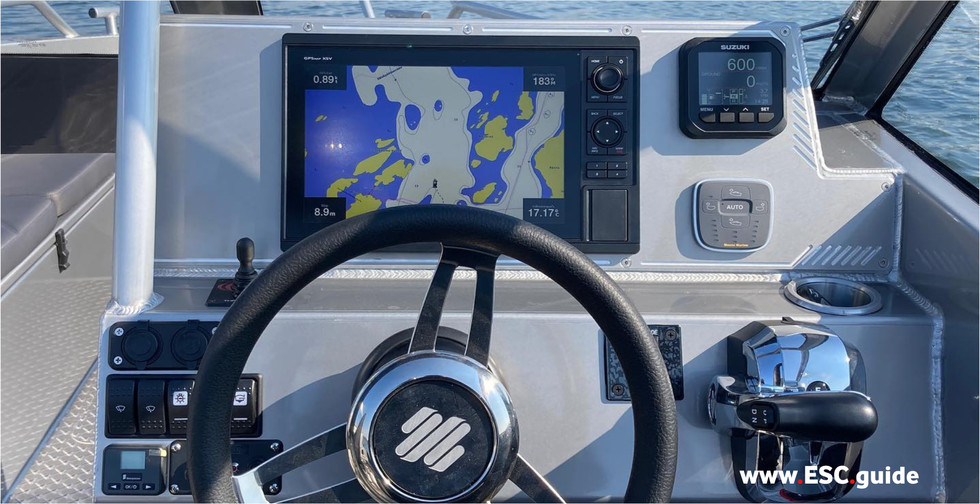

  • Control panel for the electric equipment Electric socket 12 V with USB connector on driver’s console

  • Navigational lights+musthead light

  • Automatic bilge pump Bi-polar main switch Battery container
