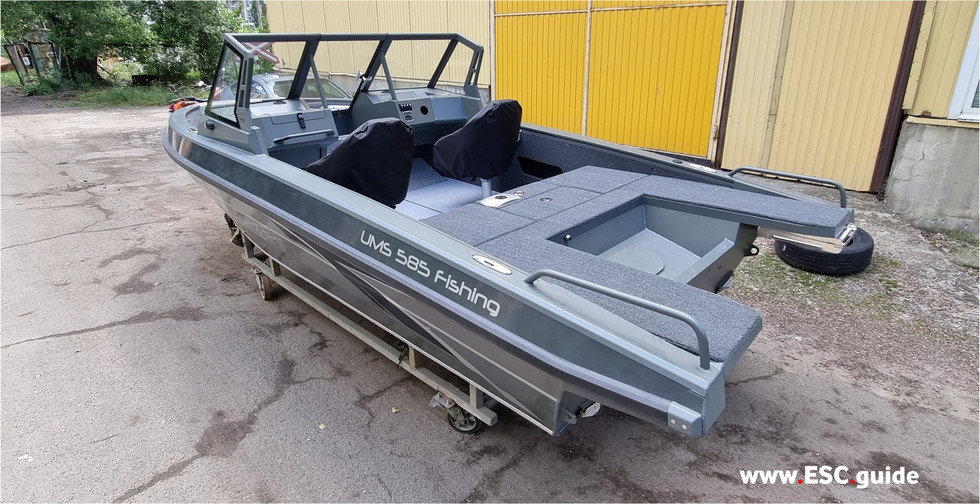

UMS 585 DC Fishing

The UMS 585 DC Fishing boat is designed for active fishing, it is a fast and dynamic boat with a maximum engine of up to 150 hp. The boat has all the elements of fishing boats: a locker for six fishing rods, an aerator with a volume of 90 liters in the bow fish platform, a comfortable aft fish platform with two integrated seats and the possibility of additionally install a fisherman’s seat and a pole for towing a skier or a wakeboarder.

One of the features of the boat is a convertible awning, which is stored in the aft fish platform locker, and can be used as a bimini for protection from the sun, or a full awning with side walls during rain.



Παρουσίαση UMS 2024
.pdf
Λήψη PDF • 23.29MB

More information: https://www.esc.guide/ums



Characteristics

  • LOA, m: 5,99

  • BOA, m: 2,16

  • Maximum load, kg: 800

  • Deadrise, transome/middle, degree: 18/23

  • Hull thickness, board/bottom, mm: ¾

  • Passengers: 6

  • Transom height, mm: 635

  • Fuel tank, l: 120

  • Hull material: Aluminum alloy 5083

  • Design category: C


Engine

  • Maximum engine, h.p.: 200

  • Recommended engine, h.p.: 115

  • Maximum engine weight, kg: 280


Equipment

  • All-welded aluminum hull

  • Aluminum deck

  • Aluminum consoles of the driver and a passenger with tempred glass and aluminum middle door

  • Transforming seats in the aft fishing-platform with black Spradling soft cushions – 2 pcs

  • Forepeack – antiskid aluminum ” grain “

  • Board covered with vinyl film

  • Raptor paint (consoles, gunwales, reccess, transom)

  • Vynil carpeting cockpit, bow fish platform

  • Carpet on the aft fishing platform, boards from inside and storage pockets

  • Cup-holder “UMS” (1 – driver console, 2 – passenger console, 4 – near the aft seat) – 7 pcs

  • Railings on the swim platform

  • Deck locker suitable for rod storage

  • Aeration well for 90 liters with control on the driver console

  • Fuel system for 120 l. Indicator and sender included

  • Sinking cleats – 6 pcs

  • Echo sounder transducer mounting plate

  • Anode hull protection with mounting bracket

  • Polyurethane foam floating blocks

  • Soft seat Centric Attwood on turnable pedestal with the slider Springfield 1240729-L – 2 pcs

  • Ventilation baffles of windshield

  • Steering system (steering wheel, steering cable, non-reversable steering gear T73NRFC)

  • Control panel for the electric equipment

  • Electric socket 12 V with USB connector on driver’s console

  • Navigational lights+musthead light

  • Cockpit LED lights – 6 pcs

  • Automatic bilge pump

  • Bi-polar main switch

  • Fishing chair in the bow

  • Telescopic swim ladder
