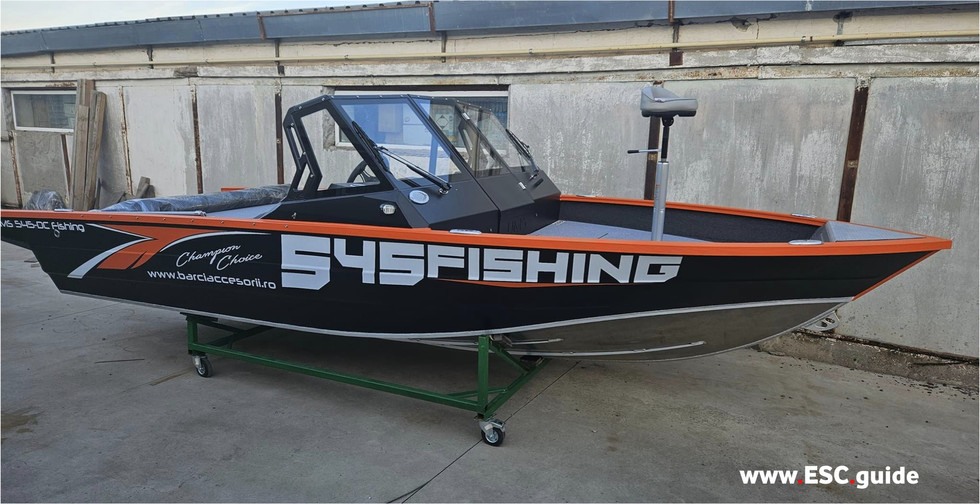

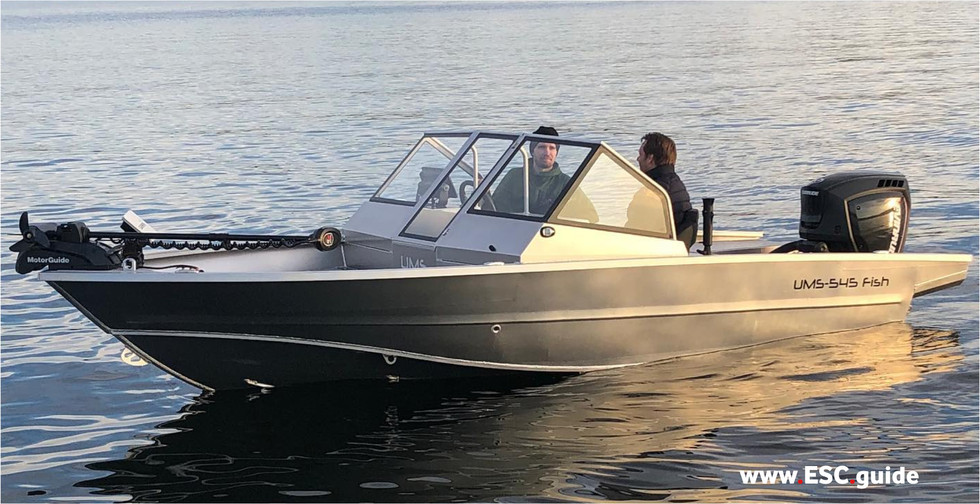

UMS 545 DC Fishing

The boat UMS 545 DC Fishing is the embodiment of a watercraft convenient for fishing and recreation on the water with a family at the same time. This is possible due to the seat-transformer integrated into the aft fish platform.

The aft seat can accommodate 3 people, which allows you to comfortably relax and travel in a company of up to five people in a boat. But it should be kept in mind that at full load, the maximum drive will be available with the maximum engine!



Παρουσίαση UMS 2024
.pdf
Λήψη PDF • 23.29MB

More information: https://www.esc.guide/ums



Characteristics

  • LOA, m: 5,07

  • BOA, m: 2,07

  • Maximum load, kg: 645

  • Deadrise, transome/middle, degree: 16/21,7

  • Hull thickness, board/bottom, mm: ¾

  • Passengers: 6

  • Transom height, mm: 510

  • Fuel tank, l: 77

  • Hull material: Aluminum alloy 5083

  • Design category: C


Engine

  • Maximum engine, h.p.: 115

  • Recommended engine, h.p.: 70

  • Maximum engine weight, kg: 190


Equipment

  • All-welded aluminum hull

  • Aluminum deck

  • Aluminum consoles of the driver and a passenger with tempred glass and aluminum middle door

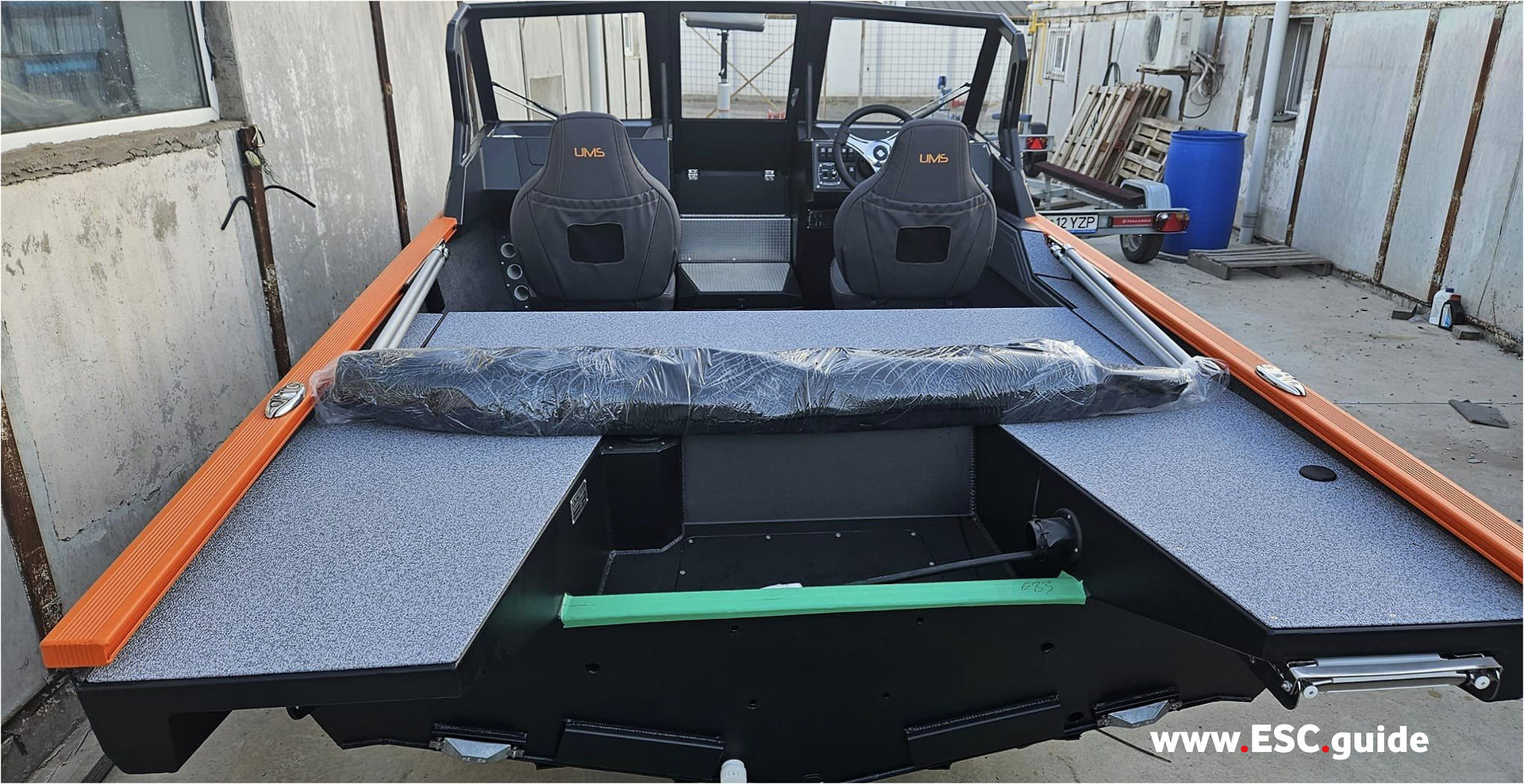

  • Seat-transformer in the aft fishing-platform with Spradling soft cushions

  • Forepeack – antiskid aluminum ” grain “Board covered with vinyl film

  • Raptor paint (consoles, gunwales, reccess, transom, boards inside)

  • Vynil carpeting cockpit, bow and aft fish platforms

  • Boards inside covered with grey carpet

  • Cup-holder “UMS” (1 – driver console, 2 – passenger console) – 3 pcs

  • Aeration well for 80 liters with control on the driver console

  • Fuel system for 78 l. Indicator and sender included

  • Folding cleats – 6 pcs

  • Echo sounder transducer mounting plate

  • Anode hull protection with mounting bracket

  • Polyurethane foam floating blocks

  • Foldable soft seat Centric Attwood on turnable pedestal with the slider Springfield 1240729-L – 2 pcs

  • Steering system (steering wheel, steering cable, non-reversable steering gear T73NRFC)

  • Control panel for the electric equipment

  • Electric socket 12 V with USB connector on driver’s console

  • Navigational lights+musthead light

  • Cockpit LED lights – 4 pcs

  • Automatic bilge pump

  • Bi-polar main switch

  • Fishing chair in the bow

  • Telescopic swim ladderEquipment

  • All-welded aluminum hull

  • Aluminum deck

  • Aluminum consoles of the driver and a passenger with tempred glass and aluminum middle door

  • Seat-transformer in the aft fishing-platform with Spradling soft cushions

  • Forepeack – antiskid aluminum ” grain “Board covered with vinyl film

  • Raptor paint (consoles, gunwales, reccess, transom, boards inside)

  • Vynil carpeting cockpit, bow and aft fish platforms

  • Boards inside covered with grey carpet

  • Cup-holder “UMS” (1 – driver console, 2 – passenger console) – 3 pcs

  • Aeration well for 80 liters with control on the driver console

  • Fuel system for 78 l. Indicator and sender included

  • Folding cleats – 6 pcs

  • Echo sounder transducer mounting plate

  • Anode hull protection with mounting bracket

  • Polyurethane foam floating blocks

  • Foldable soft seat Centric Attwood on turnable pedestal with the slider Springfield 1240729-L – 2 pcs

  • Steering system (steering wheel, steering cable, non-reversable steering gear T73NRFC)

  • Control panel for the electric equipment

  • Electric socket 12 V with USB connector on driver’s console

  • Navigational lights+musthead light

  • Cockpit LED lights – 4 pcs

  • Automatic bilge pump

  • Bi-polar main switch

  • Fishing chair in the bow

  • Telescopic swim ladder
