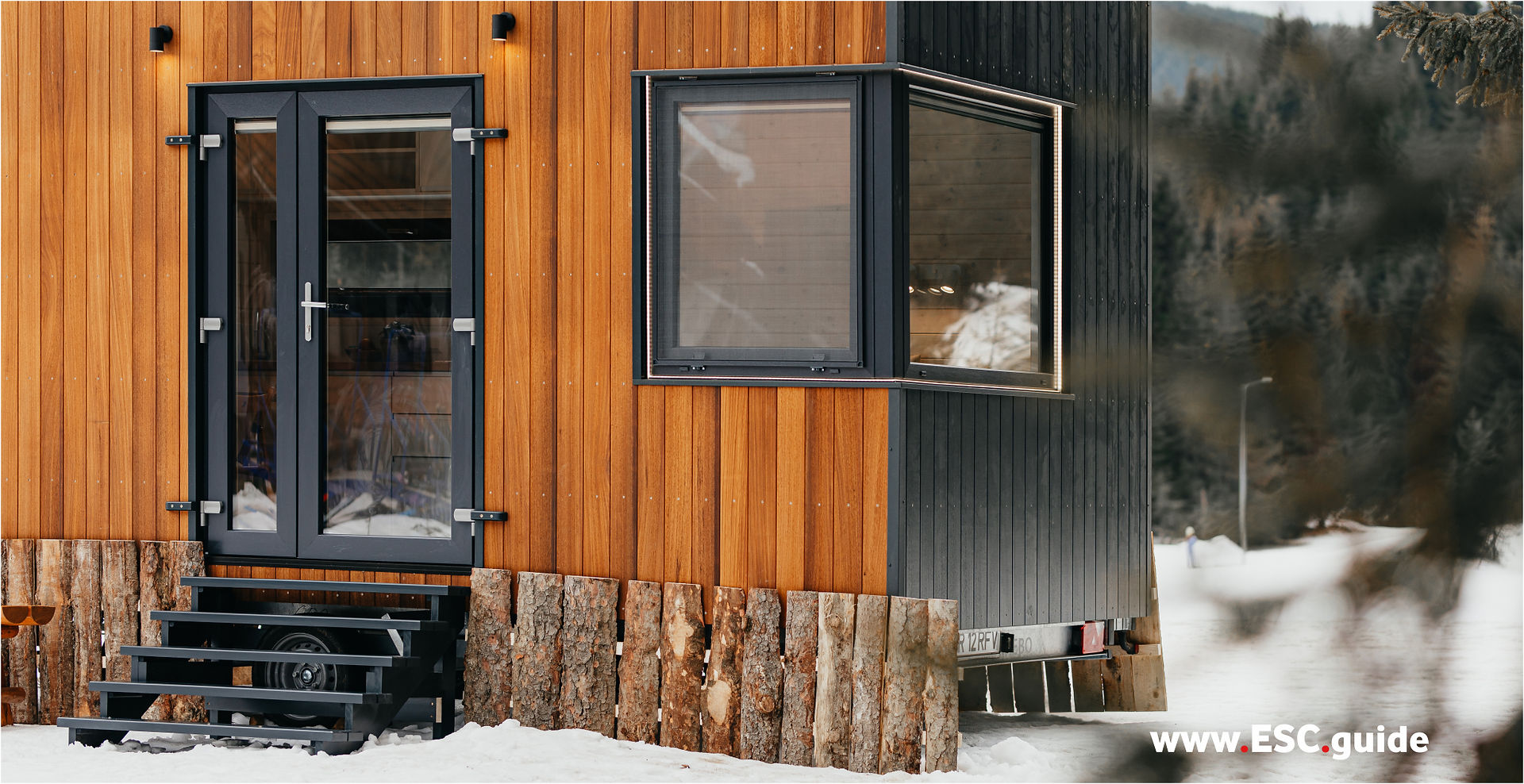

TINY RUBIK

The Tiny Rubik provides a cozy and eco-friendly living space. Its compact layout allows for efficient use without sacrificing comfort, making it an ideal choice for modern living.




Παρουσίαση ECOTINY 2024
.pdf
Λήψη PDF • 8.38MB



Dimensions

LENGTH (m)

WIDTH (m)

HEIGHT (m)

Tiny House (exterior)

6.00

2.52

3.40

Tiny House (interior)

5.70

2.22

2.90-3.10

Trailer

6.00

2.44

0.60

1. Trailer

  • Trailer, 6.0m long, galvanized with 2 axle;

2. Structure

  • Basis & walls & roof, wood 4 x 10 cm studs;

  • Lamellar beams, wood 10 x 16 cm spruce;

  • Lofts for sleeping;

  • Screws, fixing elements;

3. Claddings

  • Base (aluminium sheet 0.7 mm, pop rivet, TEGO, plywood 15 mm, tape, aluminium corners);

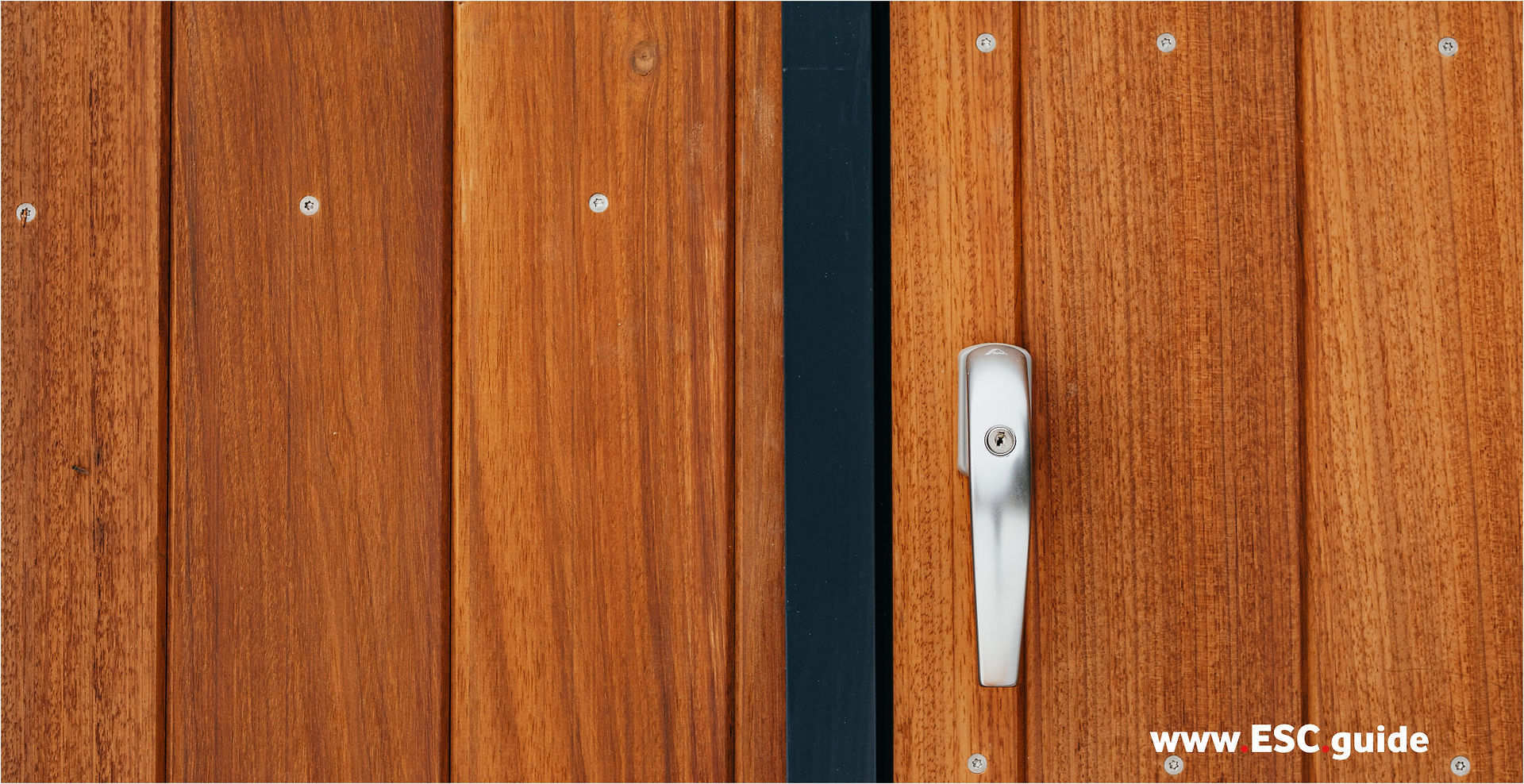

  • Exterior thermo treated wainscot, A quality;

  • Exterior paint: oil mixed with a mineral pigment of your choice (defined colors);

  • TYVEK waterproofing membrane + tape;

  • LINDAB vapour barrier + tape;

  • Interior: wainscot for the walls & ceiling covered with water-based paint or colourless varnish;

  • Interior paint: colorless primer + varnish;

  • Roof sheet – shed;

  • Exterior edges: galvanized sheet metal;

  • Flooring: laminate;

  • Technical box - small;

  • Technical box heating: defrost cable;

4. Insulation

  • Insulation: ROCKWOOL, 10 cm in the walls and 10 cm in the ceiling;

  • Insulation: POLYSTYRENE, 10 cm in the floor;

5. Windows & doors

  • PVC windows - 6m2;

  • Wood corners for the windows and door, interior;

  • Wood corners for the windows and door, exterior;

  • Galvanized sheet metal dripper;

  • PVC door, double size;

  • Plisse mosquito net for entrance door;

  • Interior plisse blinds;

  • Sliding interior door;

6. Sanitary installations

  • Copper pipes for hot/cold water;

  • Sewage pipe;

  • Electric water heater - 50L Ariston;

  • Bathroom tap for the sink;

  • Bathroom: IKEA sink;

  • Bathroom: tap and KLUDI 3 in 1 shower kit;

  • Kitchen: IKEA sink;

  • Kitchen: IKEA tap;

  • Shower: full cabin with sink and glass door;

  • Shower: vinyl sheets on the walls;

  • Toilet: classic flush toilet;

  • Bathroom ventilation system Soler Palau Silent;

7. Electrical installations

  • Cables & electrical panel;

  • Spot lamps;

  • Switches Legrand;

  • Interior ceiling lamp;

  • Exterior lamps;

  • Exterior Legrand plug;

  • Interior led light;

  • Thermostat;

8. Heating

  • Heating: carbon film underfloor heating system with thermostat;

9. Furniture

  • IKEA kitchen furniture – 4 pcs;

  • IKEA counter top - 1 pcs;

  • IKEA bathroom washbasin cabinet – 1 piece;

  • Mirror Table: custom made;

  • DIY bed;

  • Mattress;

  • IKEA kitchen chairs;

  • Entrance stairs - 3 steps;

  • Simple wooden ladder;

10. Accessories

  • Induction hob - 2 burners;

  • Microwave oven TILLREDA;

  • Refrigerator: built-in;

  • House ventilation system, AERAULIQA;

  • AC unit: cooling and heating SAMSUNG;
