TINY HOGWARTS

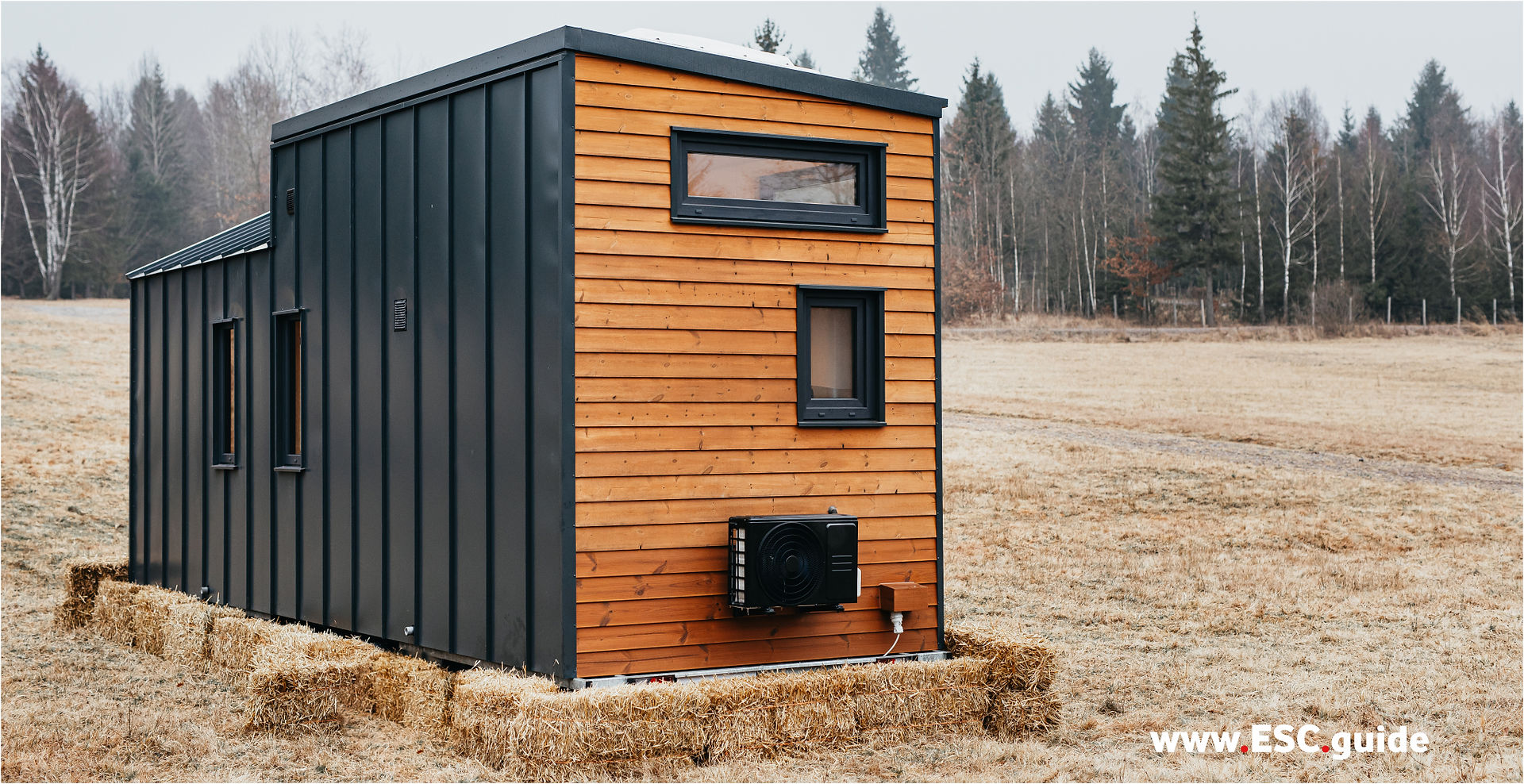

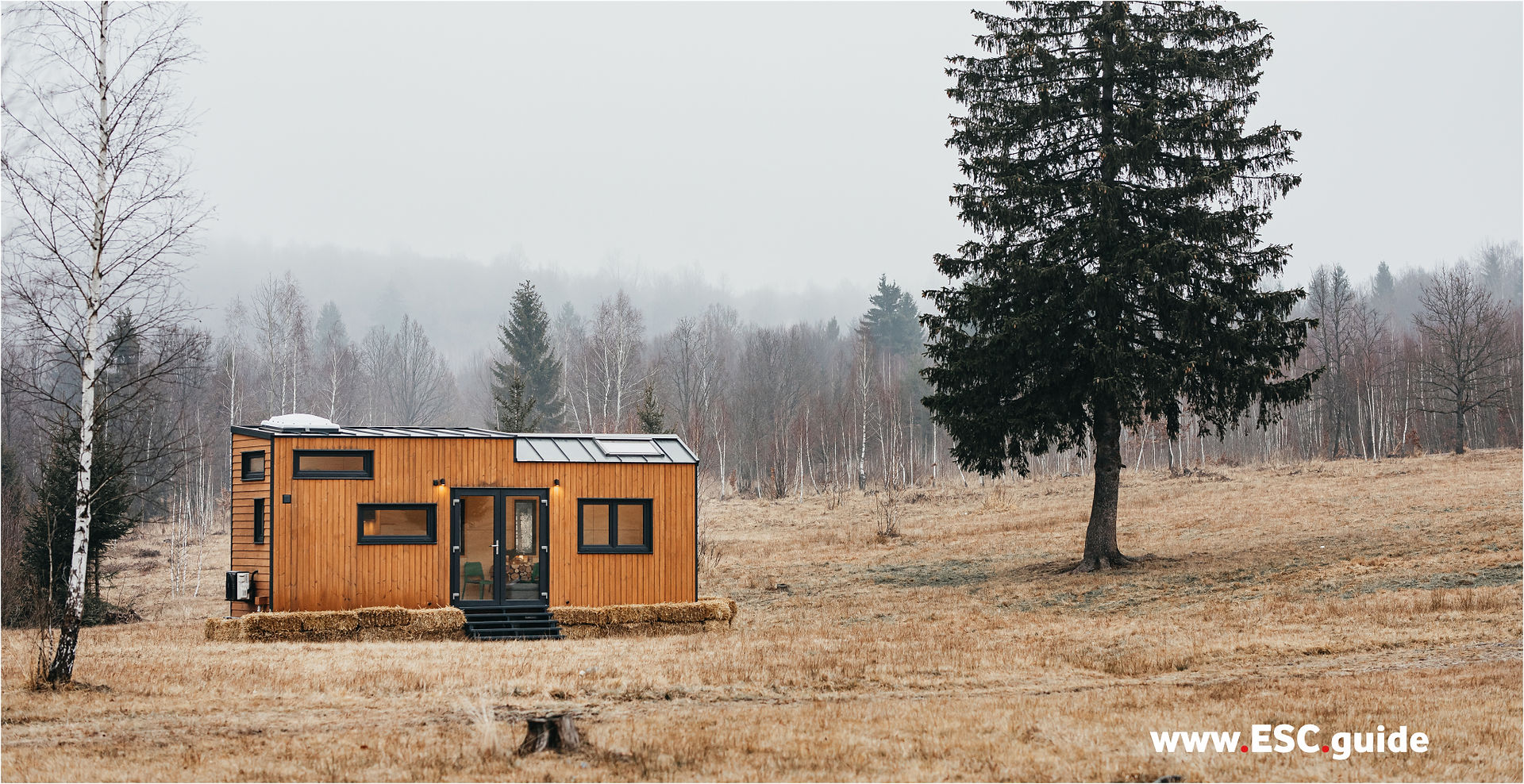

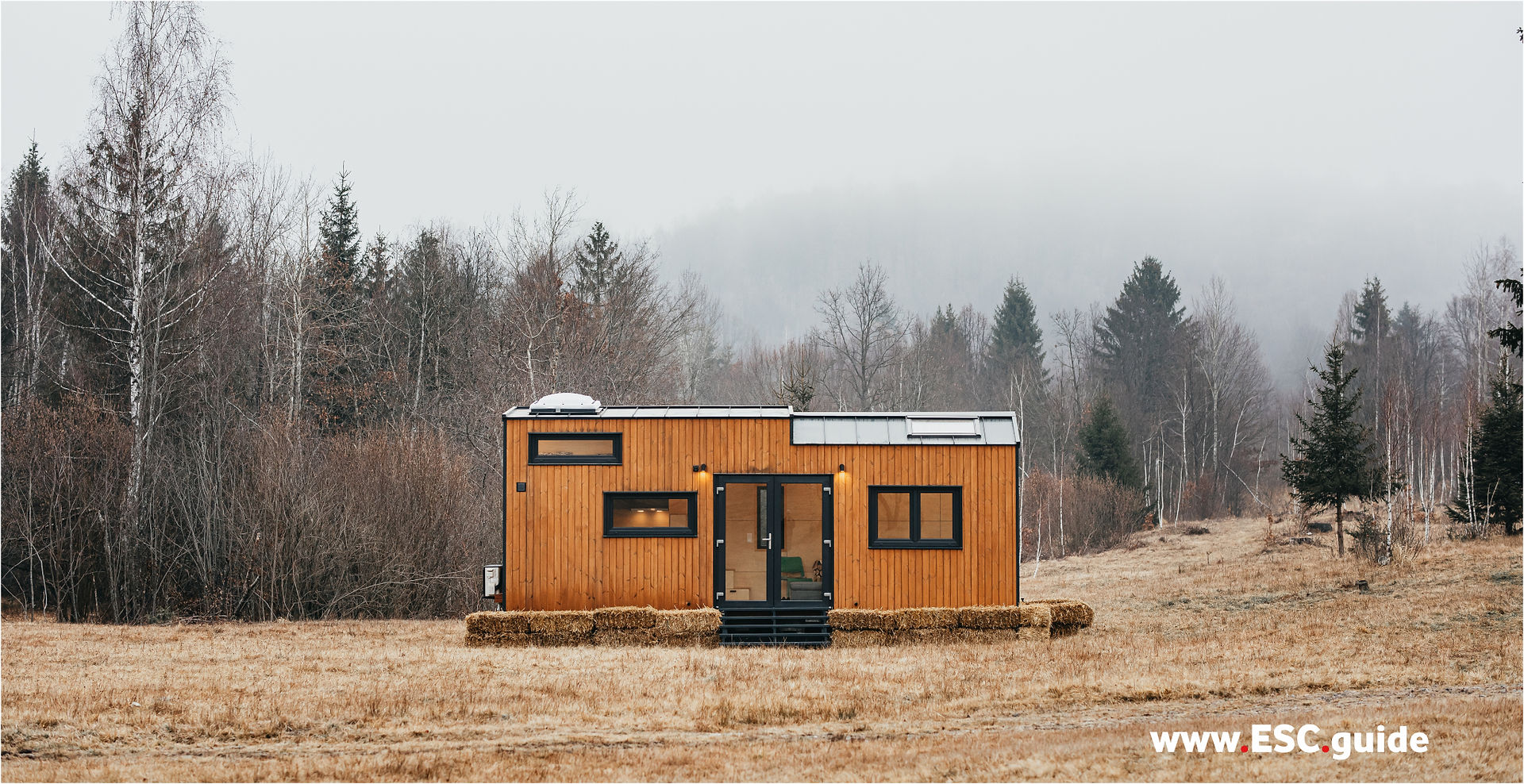

Windows left, windows right, up…. Lots of windows give character and a distinctive look to this Tiny. Light just inundates the interior with the huge skylights offering stunning view of the stars at night. Another nice feature is the aluminum covered rear and back side to contrast the wooden parts.




Παρουσίαση ECOTINY 2024
.pdf
Λήψη PDF • 8.38MB



Dimensions

LENGTH (m)

WIDTH (m)

HEIGHT (m)

Tiny House (exterior)

8.00

2.52

3.40

Tiny House (interior)

7.70

2.22

2.90-3.10

Trailer

7.80

2.44

0.60

1. Trailer

  • Trailer, 7.8 m long, galvanized with 3 axle;

2. Structure

  • Basis & walls & roof, wood 4 x 10 cm studs;

  • Lamellar beams, wood 10 x 16 cm spruce;

  • 1 Loft for sleeping;

  • ü  Screws, fixing elements;

3. Claddings

  • Base (aluminium sheet 0.7 mm, pop rivet, TEGO, plywood 15 mm, tape, aluminium corners);

  • Exterior thermo treated wainscot, A quality;

  • Exterior: galvanized metal sheets;

  • Exterior paint: oil mixed with a mineral pigment of your choice (defined colors);

  • TYVEK waterproofing membrane + tape;

  • LINDAB vapour barrier + tape;

  • Interior: plywood for the walls & ceiling covered with water-based paint or colourless varnish 8 mm;

  • Interior paint: water based paint;

  • Roof sheet – gable roof LINDAB;

  • Exterior edges: galvanized sheet metal;

  • Flooring: laminate 10 mm;

4. Insulation

  • Insulation: ROCKWOOL, 10 cm in the walls and 10 cm in the ceiling;

  • Insulation: POLYSTYRENE, 10 cm in the floor;

5. Windows & doors

  • PVC windows - 7m2; Wood corners for the windows and door, interior;

  • Wood corners for the windows and door, exterior;

  • Galvanized sheet metal dripper LINDAB;

  • Attic window - 2 pcs;

  • PVC door, double size;

  • Sliding interior door;

6. Sanitary installations

  • Copper pipes for hot/cold water;

  • Sewage pipe;

  • Electric water heater - 50L Ariston;

  • Bathroom tap for the sink;

  • Bathroom: IKEA sink;

  • Bathroom: tap and KLUDI 3 in 1 shower kit;

  • Kitchen: IKEA sink;

  • Kitchen: IKEA tap;

  • Shower: full cabin with sink and glass door;

  • Shower: vinyl sheets on the walls;

  • Toilet: classic flush toilet with wall mounted reservoir;

  • Bathroom ventilation system Soler Palau Silent-100 CZ Design;

7. Electrical installations

  • Cables & electrical panel;

  • Switches (Panasonic);

  • Power sockets (Panasonic);

  • Spot lamps;

  • Interior ceiling lamp;

  • Exterior lamps;

  • Thermostat;

8. Heating

  • Heating: carbon film underfloor heating system with thermostat;

9. Furniture

  • IKEA kitchen furniture – 6 pcs;

  • SÄLJAN counter top - 2 pcs;

  • IKEA bathroom washbasin cabinet – 1 piece;

  • Custom made stairs – storage space with doors;

  • Table: custom made foldable with metal frame;

  • Storage unit/bed stage custom made;

  • IKEA kitchen chairs 2 pcs;

  • Entrance stairs - 3 steps;

  • Wooden railing - loft;

10. Accessories

  • Induction hob - 2 burners - ELECTROLUX;

  • Exhaust - UTDRAD;

  • Oven: electric - ELECTROLUX;

  • Refrigerator: built-in HUTTRA;

  • House ventilation system QUANTUM HR100, AERAULIQA;

  • AC unit: cooling and heating;
