MARTAC / T38

Next Generation Autonomous USV

Performs In Environments & Conditions Where Other Manned And Unmanned Systems Cannot.

Deployable from ship (similar to 11m RHIB) - Diesel or hybrid diesel propulsion powerplant

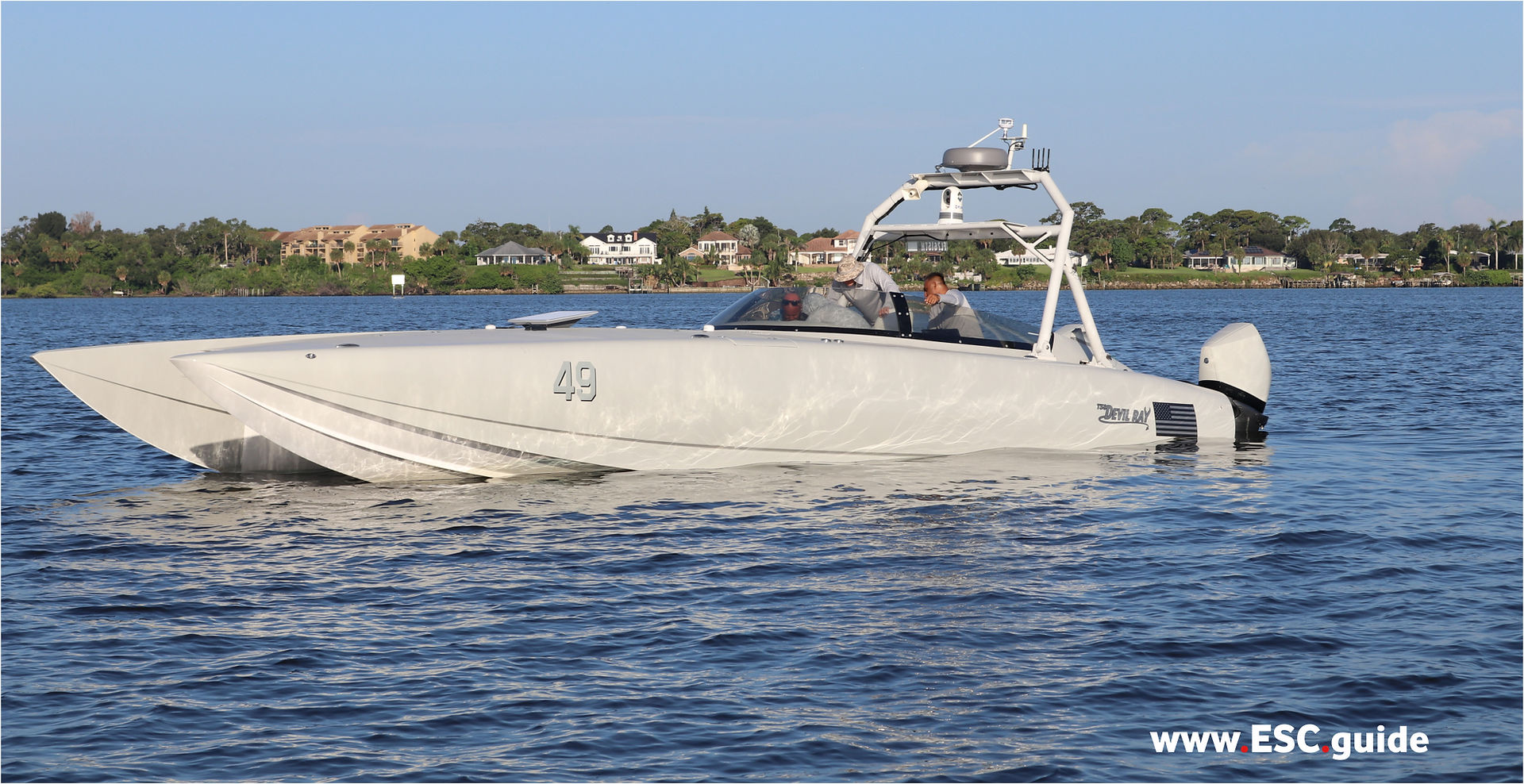

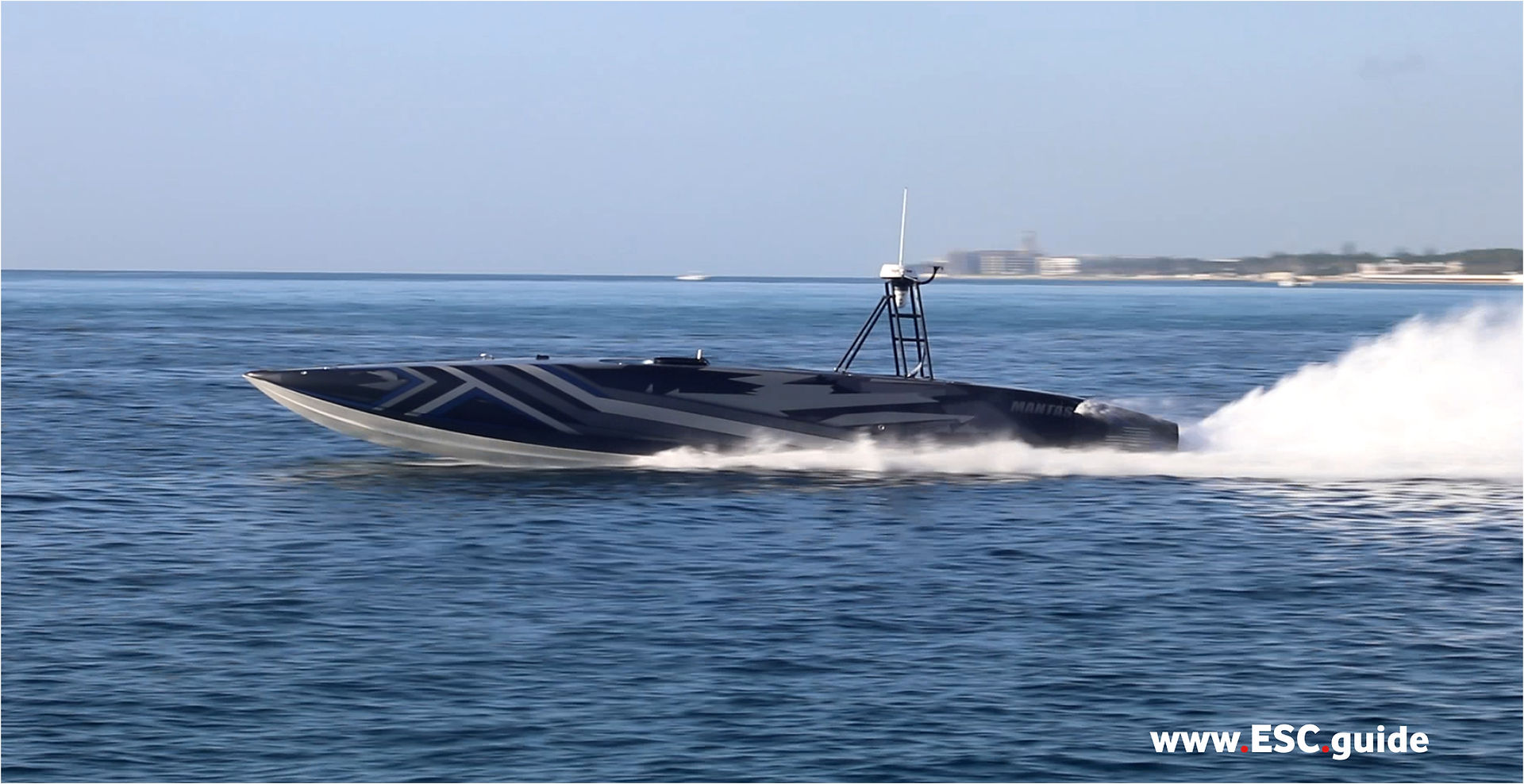

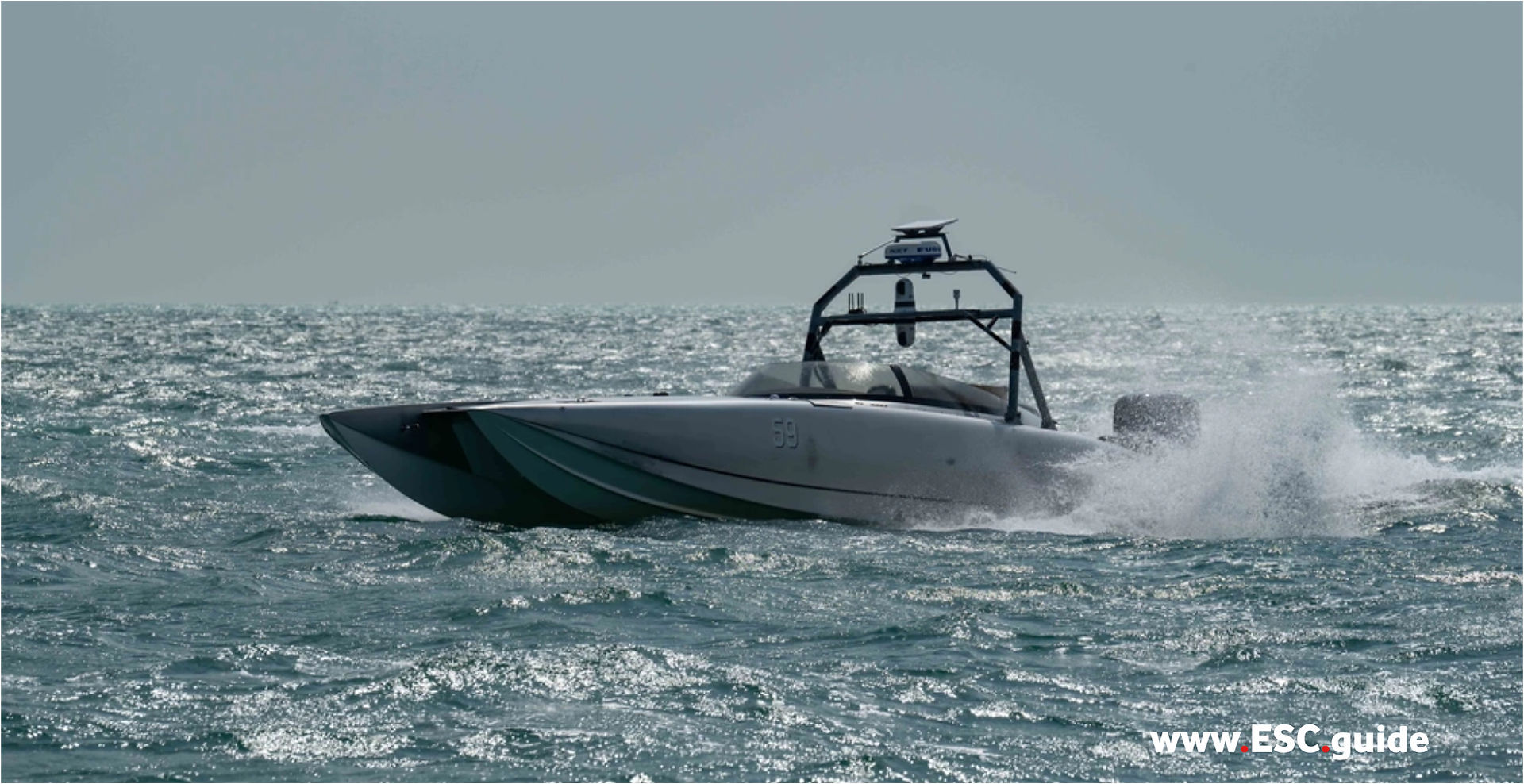

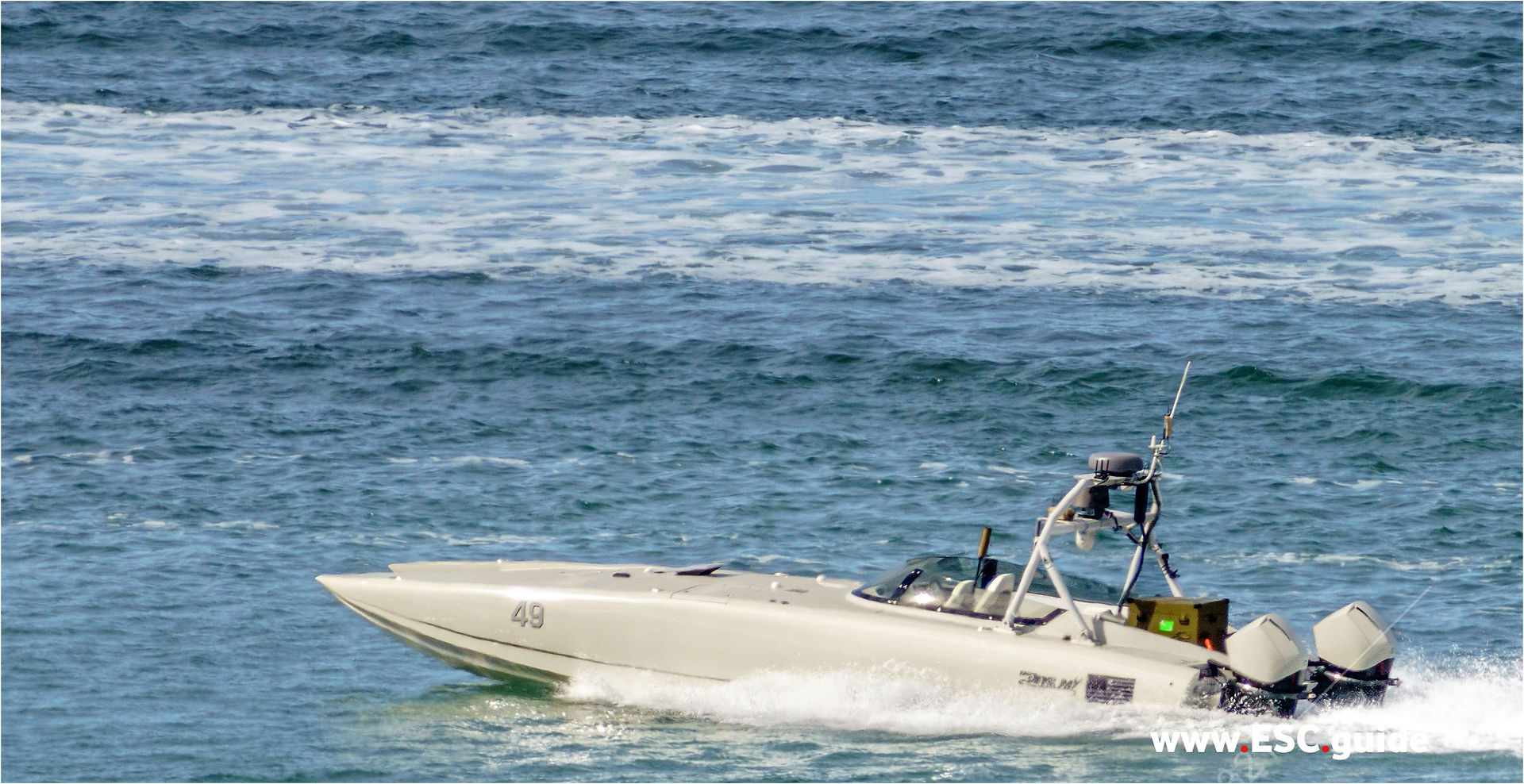

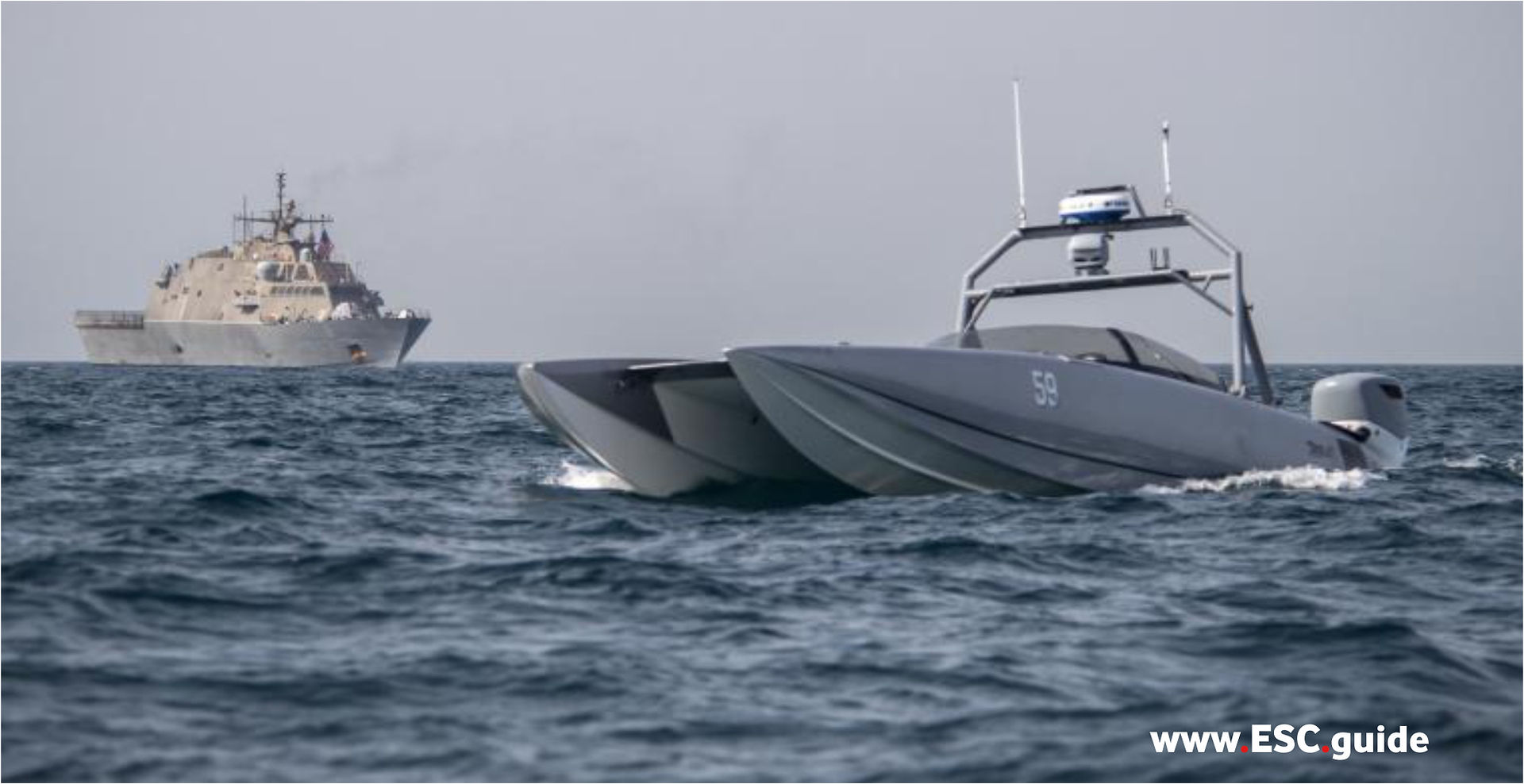

With a length of 38 feet (11.1 m) and based on a high-performance dual sponson platform that has multiple world records for manned speed and stability, it’s a medium USV system capable of high burst speeds, sea state stability and a maximum payload capacity of 4,000 lbs. (1,814 kgs).

The T38 can be equipped with inboard/outboard powertrain options, allowing you to choose between diesel or gas engines to address your specific operational requirements. Based on those mission requirements, the combination of powertrain options and payload management can result in T38 systems with burst speeds ranging from 70 to 100+ kts.

The T38 platform performance capabilities are maximized when combined with advanced sliding autonomy control modes that range from full-operator and autonomous control to shared control where multiple operators can cooperatively share USV control and payloads.

The T38 is a highly reliable system based on redundant modules and an open and flexible architecture that allows for plug and play payload management system. Deploying the T38 can provide a serious augmentation capability to your fleet operations.


Integration examples:

· E/O IR/Thermal PTZ camera kits

· Side scan, multibeam, radar kits

· Can be weaponized

· LOS, BLOS, 4GLTE, MIMO, Satcom comms kits

· Can launch USVs, UUVs &UAVs


Missions:

· ISR, SIGInt, EW, fast attack boat intercept, ship escort, MCM, ASW, S&R/HADR, bathymetric mapping



More Information: https://www.esc.guide/martac



Specifications



Length / Width/ Height: 11,6 m / 3,4 m / 1,5m

Draft: 0,46m

Maximum Vessel Weight: 3.084kg

Maximum Payload Weight: 2.041 kg(Max payload weight may be exceeded but at significant performance degradation)

Ocean Capable: SS5 /SS7

PropulsionT ype: Twin Screw Diesel Surface Drive

Operation Speed(kts): 0 - 50

Max Speed(kts): 100+

Range (nm): 800 – 1.200

Endurance (hrs) at Cruise (@10kts): 80 - 120

Time on Station (hours/days): 30 days +

Sea State Capable/ Survivable: 5/7

Weapons Types: ISR, Electronic Warfare, C4 WEID, RWS, other

Self-rightingC apable: Not necessary

Gator Capable: Yes

Integrated Weapons:RWS can be outfitted with various weapons and lasers compatible with CROWS RWS platform. They could include Browning M2 and WKM-B (12,7 mm), M249 (5,56 mm) M240 and UKM-2000C (7,62 mm),MK19, MK47 and Heckler & Koch GMG 40 mm Grenade Launchers inclusive Airburst , M134 7,62 Gatling and various Non-Lethal effectors. NOTE: This capability is not integrated by MARTAC and would need to be integrated through a 3rd party supplier or the country end-user.
